Plan 45: design at the adopter's scale: install from a commit, a bundle that fits, corpus rules, and the Spec Studio's phase 0

[darko-mijic]

This PR carries plan 45: design at the adopter's scale. The first adopter, libar-platform, designs a Convex transactional domain platform as about 240 Specs in six Packs, most of it design that will stay ahead of its code for months. This chunk unlocks the Protocol for that work. An adopter installs from a commit. A design pass fits a large Pack into a model's budget. A corpus runs its own policy inside sdp validate. And a person reads a Pack's design on a static page: the Spec Studio's phase 0 (plan 42 was its brief). The platform moved onto this branch in its own pull request, libar-platform#13, which pins this head.

Read this first. The owner asked for as much of the platform's design work as possible to be unlocked, and delegated the rulings while away. Every ruling is in the second table under Decisions and rulings, and each is a candidate to overturn before merge. One question is the owner's alone and blocks nothing here: whether the Studio replaces the platform's committed Pack page (its decision 58), and how a reviewer holding only a link reaches the Studio's pages.

Why

A read of the platform, its feedback and this repository's backlog found four needs, in order:

1. Reach main cheaply. The platform pinned 822aea4 through a vendored tarball, so about fifteen of its asks, delivered here since, were out of reach.
2. Design passes that fit a budget. The context bundle (recipe 36) returned only its header for every platform Pack: pack:history-view needed at least 299,106 UTF-16 units against a default budget of 100,000, most of it repeated locations and declarations carried twice.
3. A page a person can read. The platform's reviewers read carrier files, because the Markdown Pack page is a wide table.
4. The platform's rules inside sdp validate. The platform's gate, design/tools/check.py, parsed carriers to check citation edges, isolation between contexts and its readiness policy, outside the one graph.

What it introduces

Install from a commit. The package builds itself through prepare, so an adopter pins github:libar-dev/software-delivery-protocol#<sha> and re-pins with one edit. The README teaches the approvals npm and pnpm need, by git source and never by name alone. npm run check:git-install installs a committed revision with npm and pnpm, from a clone and from a git archive, and requires sdp --version to name the exact commit. A GitHub install builds from an archive with no .git, so the commit now travels through export-subst. → spec:consumers.adopter-on-ramp, spec:consumers.engine-provenance

The design loop at the adopter's scale.

• The context bundle carries each member's file once, an open question only in questions, a pinned value only in its Design section, and a cut entry as its address or { line }. A new footing cut comes second, and declarations: "addresses" opts into a last cut that keeps pinned declarations as their entry addresses. pack:history-view now fits in 93,806 units. → spec:consumers.context-bundle
• Recipe 41, the key-family register, lists every Design and UI entry whose key starts with a prefix, across the corpus, a Pack or a list of Specs, with no row cap. It turns the platform's 109 limit*, 27 error* and 80 table*/index* entries into registers. → spec:consumers.agent-surface.register-recipes
• Every recipe declares the parameter names it takes. A name it does not take replaces the answer with { unknownParams, accepts }, so recipe 30 given spec no longer answers for its built-in sample. → spec:consumers.agent-surface.recipe-parameters

Corpus checks. Three Specs designed, built and grouped in pack:corpus-checks-v1, each with examples that execute.

• sdp validate --rules PATH [--params FORM]... runs a corpus's own policy: one sdp q body per file, over its own copy of the graph and report, returning { findings }. Each --params belongs to the --rules before it. Corpus findings print in their own section, name their rule and rules file, never move a readiness floor, and fail the run like a Protocol error. --watch reads the rules again each cycle. → spec:validation.corpus-rules
• Recipe 42, the architecture walk, checks forbidden layer pairs and isolated contexts over the anchored uses edges. A recipe that returns findings is a rules file as shipped, so --rules dist/recipes/42-the-architecture-walk.js runs it under validate. → spec:validation.architecture-constraints
• Recipe 43 compares component designs, the Specs that state a component before its code, with the component anchors that later realize them. → spec:model.planned-architecture

The Spec Studio, phase 0. sdp studio publishes a static page set under generated/spec-studio/: an index with task routes, one page per Pack and per Spec, and a search page. The pages open from file:// with no network and read in full without script, except search. Every link resolves inside the page set, two runs give the same bytes, and the repository's projection suite certifies it as a fifth root. A Pack page leads with a summary the graph computes, then the framing and one closed card per member, each with its rung, floor, questions and bindings in words. Six custom elements enhance the pages, with no framework and no build step on the adopter's side. Search shares one matcher with g.findByConcept, shipped for browsers as the ./concept-match subpath. The design pass split the Studio into child Specs so the code satisfies whole Specs; a hand-built prototype on real data was reviewed and then deleted once the real pages replaced it. → pack:spec-studio-v1, with publisher, pack-page, search and page-elements

Smaller things.

• A prose mention inside a rule, flow or question now carries its line. → spec:validation.prose-mentions
• The Vitest adapter awaits a world's after hook whether its steps pass or fail. → spec:extraction.example-runner#rule.worldCleanup
• check-carrier-rule.mjs is deleted: it still demanded a sentence the Pack syntax ruling retired. pack:self-hosting-v1 again holds every self-hosted Spec, as its framing says.
• The vault (spec:consumers.obsidian-vault) is ruled its own projection, not the Studio's local half, and waits for a reader.
• The three skills, AGENTS.md, the README and the recipe catalog teach all of the above.

See it

The Studio is new, so there is no base view; the four frozen projections did not change. These are the pages at the head, from file://. How these were made.

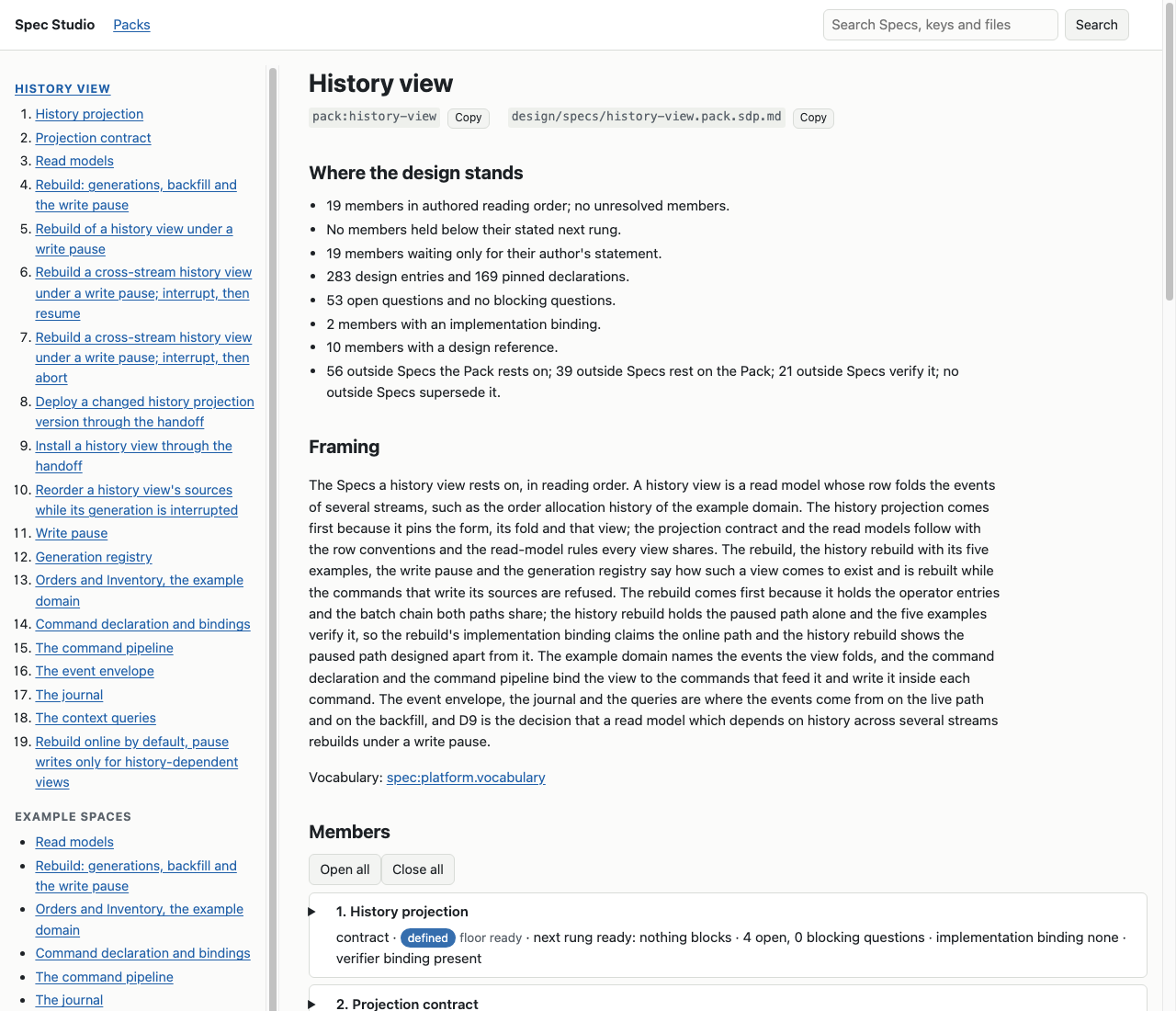

The platform's history-view Pack. The summary first, then the framing and the member cards:

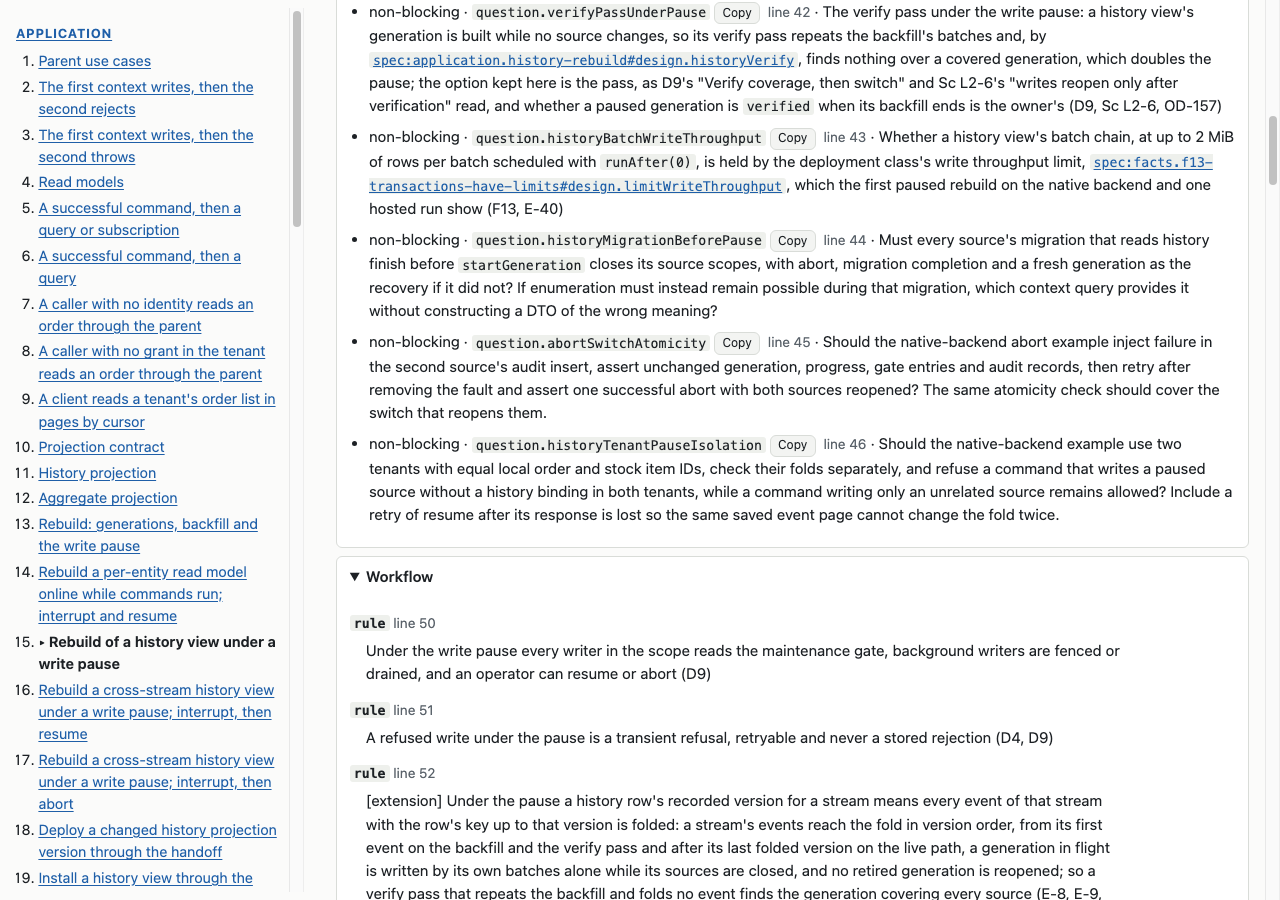

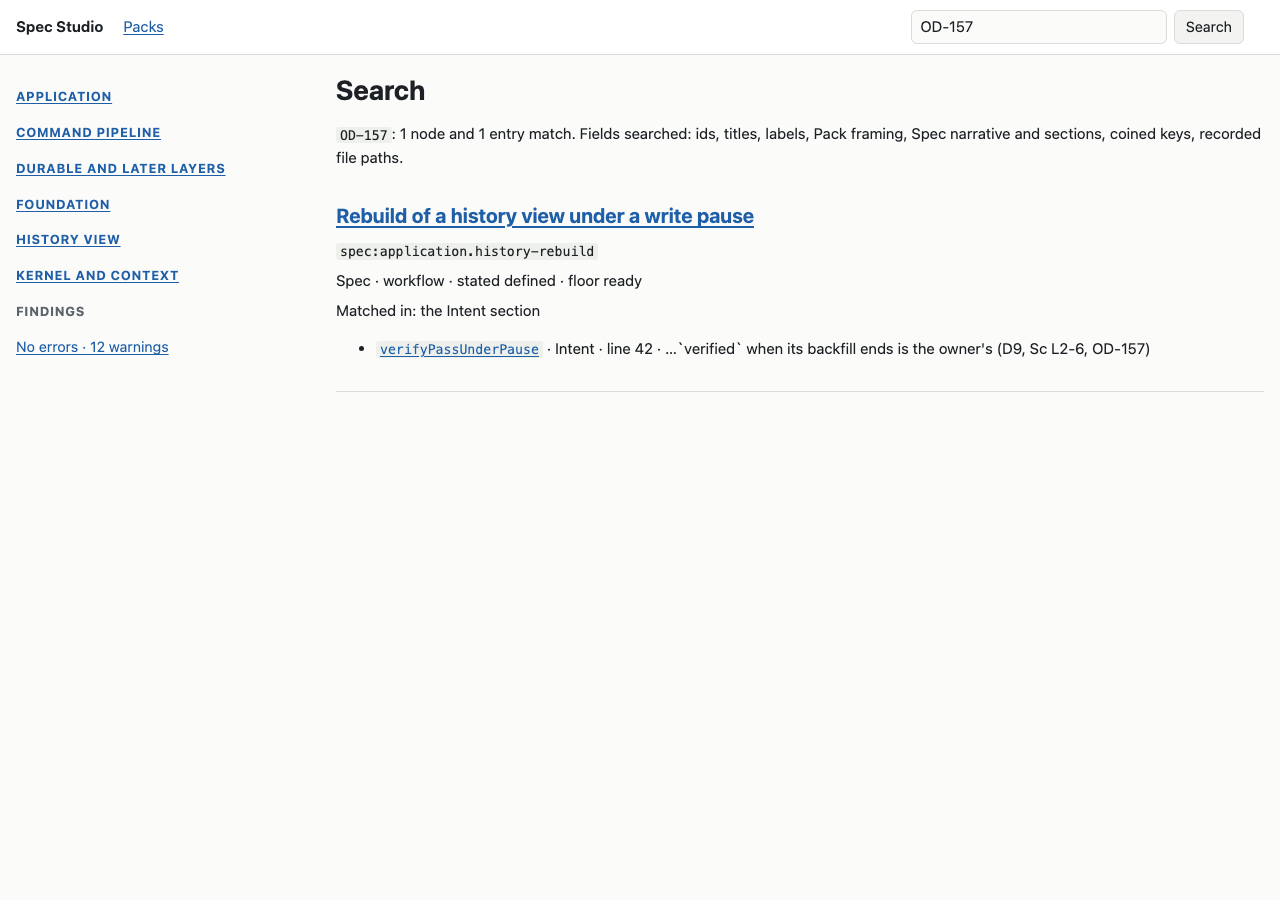

A question with its fields, and search finding OD-157, a decision register id the platform wrote into that question:

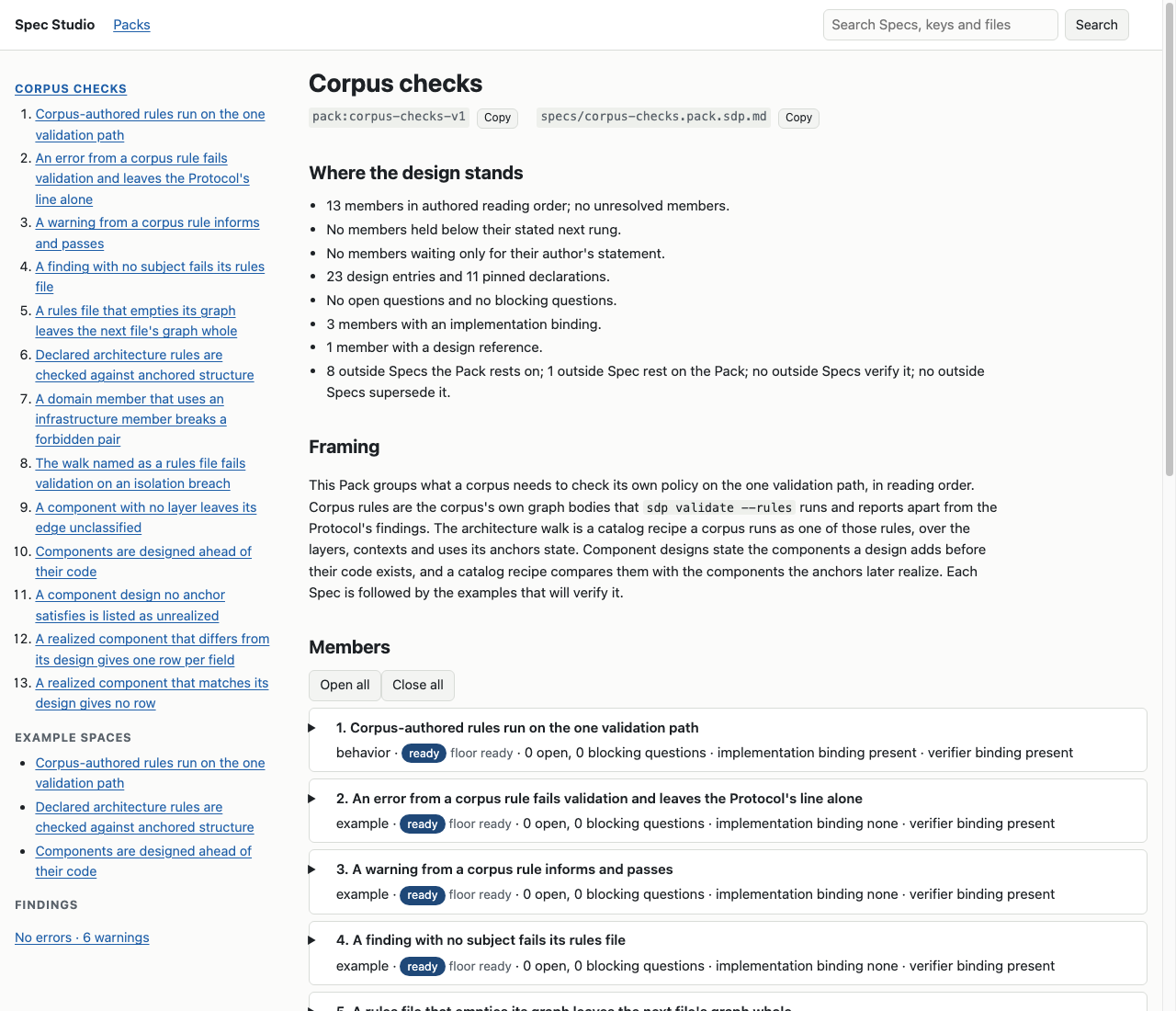

This repository's own pack:corpus-checks-v1, every member stated and derived ready:

The same Pack page at 390 pixels, an example page and the index are in the assets folder. No human view yet shows a declaration beside the assertion that checks it, run results, or the vault.

The first adopter on this branch

libar-platform#13 pins this head and passes its whole CI checks job on it:

• package.json pins github:libar-dev/software-delivery-protocol#abf532d…, this branch's head, with the approvals the README teaches; sdp --version names that commit, and the vendored tarball is gone. The platform's CI (checks and native) passes on it.
• decisions.py and the page scripts run the shipped dist/recipes/ files with --params instead of cutting bodies out of the catalog.
• The graph-side half of check.py (readiness policy, mentions, address resolution, cycles, citation edges, question sources, isolation) now runs as design/rules/policy.js and recipe 42 under sdp validate --rules. Every planted mistake its tests carry still fails the gate.
• npm run studio publishes the platform's 251 pages, and the gate checks they build deterministically. The committed Pack page stays: see Feedback wanted.
• Two associations: OD-157 in its question's text, and a test anchor binding the type-comparison suite to the eleven Specs whose declarations it compares.

The reader-task acceptance. A gpt-6-astra job given only the platform's page set, with no repository and no CLI, worked plan 42's five tasks:

Task	From the pages	Where
Find the history contract	Yes	Pack page, then history-projection's Contract and Design sections, #design.typeHistoryProjection
Locate OD-157	Yes	Search, then history-rebuild#question.verifyPassUnderPause
Explain the aggregate dependency	Yes	"Rested on by" on the Pack page, then aggregate-projection's relations and its blocking question
Find one declaration's type comparison	In part	The page names the suite and its file and line; no page shows the assertion for one declaration
Native-backend evidence for a paused-rebuild example	Yes: none recorded	The example's Verification section names the tier; its Bindings say no verifier and no run result

Self-hosted and graph-measured

The design diff (recipe 35) from 7eef29b, the arc's base: 16 Specs added, 24 changed, none removed; 3 Packs changed (one added); 28 Specs whose bindings changed. Pack design (recipe 29) at the head:

Pack	Members	Held below next rung	Waiting only for the author	Entries · pinned	Open questions	With implementation
pack:corpus-checks-v1	13	0	0	23 · 11	0	3
pack:spec-studio-v1	18	1	7	81 · 20	3, none blocking	8

The Studio Pack's seven waiting members are the Studio's parent and the Specs that carry its deferred panels, which stay below ready until a reader needs them. The held one, the lenses, waits on the verification panels and the runtime overlay. Re-run the recipes rather than inheriting these numbers.

Decisions and rulings

The owner's direction for this chunk, on 2026-10-13:

Direction	Where it landed
Schedule as much work as possible to unlock the platform's design work, avoiding excess complexity	plan 45, its lanes and its deferrals
Do any work the platform repository needs; build what the Protocol lacks first	Lane E, and the Protocol fixes it found (the GitHub install's commit)

Delegated to the main thread, with cross-family reviews as advisers (gpt-6-sol, Opus 5.5, Fable 5.1); each awaits the owner's review:

Ruling	Carrying Spec
An adopter installs from a commit through prepare; no npm prerelease while the version is 0.0.0	adopter-on-ramp
A build from an archive records its commit through export-subst	engine-provenance
Pinned declarations may be cut to entry addresses, opt-in; a partial bundle stays refused; a cut entry without an address keeps only { line }	context-bundle
The key-family register is one recipe and needs no model change; an unresolved Pack member is a diagnostic	register-recipes
A parameter name a recipe does not take replaces the whole answer with { unknownParams, accepts }	recipe-parameters
A rules file is one sdp q body returning { findings }; a rule id is one kebab token; a finding's file is a root-relative POSIX path	corpus-rules
Each --params belongs to the --rules before it; each file gets its own copy of the graph; one file named twice is refused, through a symlink too	corpus-rules
validate exits 1 on any Protocol error, corpus error or failed rules file; under --watch a rules file is reread each cycle, and editing one starts no cycle	corpus-rules
The rules runner lives in the CLI; the validation layer holds only the corpus finding types	corpus-rules
The architecture walk's provisional answers stand: it runs as a recipe and as a rules file	architecture-constraints
Choosing a provider stays prose; one runtime owner per concern is a corpus rule; an empty uses is stated none; an absent anchor is realizedLayer: "absent"	planned-architecture
A corpus-checks Pack holds the three Specs and their examples	pack:corpus-checks-v1
The Studio publishes static pages that read without script, except search; elements only enhance; phase 0 has no AI slices	spec-studio
Search lives on one page, indexes only the graph, and shares findByConcept's matcher, shipped as ./concept-match	search
A Pack page leads with its summary, folds the holds into it, and gives each card one colored badge	pack-page
A keyed question shows its key with a copy action for its address; example-space owners show only on Pack and Spec pages	spec-page.core, shell
The fifth reader task passes when the reader finds whether a verifier is bound	spec-studio
The Studio joins the projection suite; element tests run under Node with no DOM library	publisher
The vault is its own projection, not the Studio's local half, and waits for a reader	obsidian-vault
ready stated for corpus rules, architecture constraints, planned architecture, their ten examples, and the Studio's data, shell, search, publisher, index, Pack page, Spec page core and page elements; defined for the Studio's lenses, Spec page, components and responsive layout	each Spec; recipe 9 cleared the floor first

No row is added to the decision registry: none of these passes the three-part test on its own, and each lives in its carrying Spec.

How it ran

Three waves, each lane in its own worktree, each reviewed by a model of another family and fixed before the main thread merged it. gpt-6.1-sol built; Opus 5.5 designed and reviewed; gpt-6-sol and Fable 5.1 reviewed. Wave 1 built the install path and the loop at scale and designed corpus checks and the Studio, with a prototype Pack page. Wave 2 built corpus checks and the Studio, moved the platform onto the engine, and brought the self-hosting oracle to green. Wave 3 pinned the platform to the published branch, retired its graph-side checks into rules files, and ran two adversarial reviews and Astra's acceptance. The reviews' findings that held were fixed with tests that failed first: recipe 43 missing a design id in a double-backtick span, a rules file run twice through a symlink, an absolute finding path, recipe 41 throwing on an unresolved Pack member, a bundle cut dropping an address before a full stop, docs naming four projection roots, and the GitHub install's unknown commit.

Review on the PR

Greptile ran the code and found three defects, each fixed in abf532d with a test that failed first:

• Watch could not finish stopping (P1). Ctrl+C during a rules body that awaits a live handle left validate --watch --rules running, and the next rules file could still run. An operator stop during a rules run now ends the process with exit 0 and no further output → spec:consumers.validate-watch#rule.operatorStop.
• Key searches missed Specs (P2). A Spec whose only match was a coined key (verify pass against verifyPass) was dropped; it is now a result.
• Search repeated section walks (P2). Each record's authored-text lookup is built once per search instead of once per entry; a property-read count proves it (16,512 reads for 128 entries before, under 256 after).

CodeRabbit skipped this PR: it changes more files than its limit.

Try it

git switch feature/design-at-scale-v0 && npm ci && npm run build

# The Studio: open generated/spec-studio/index.html
node dist/cli/sdp.js studio . --exclude explorations --exclude examples --exclude test/fixtures/import/parity
# Wrote …/generated/spec-studio (286 files)

# A corpus rule: the architecture walk as a rules file
node dist/cli/sdp.js validate . --exclude explorations --exclude examples --exclude test/fixtures/import/parity \
  --rules dist/recipes/42-the-architecture-walk.js --params '{"forbidden":[{"from":"domain","to":"edge"}]}'
# validate: 0 errors · 6 warnings (conformance + honesty over the one graph)
# corpus rules: 0 errors · 0 warnings · 0 of 1 files failed (the corpus's own rules)

# A key family, and a name a recipe does not take
pnpm --silent sdp:q "$(cat dist/recipes/41-the-key-family-register.js)" --params '{"prefixes":["walk"]}' --json
# { "totals": { "rows": 6, "specs": 1, "byPrefix": { "walk": 6 } }, … }
pnpm --silent sdp:q "$(cat dist/recipes/30-design-change-impact.js)" --params '{"spec":"spec:consumers.reader"}' --json
# { "unknownParams": ["spec"], "accepts": ["specs"] }

In an adopter: pin github:libar-dev/software-delivery-protocol#abf532d9a2a5da536d9235215f108d6aaa723ca2 with the README's approvals, then npx sdp --version.

Measured at close

At abf532d, re-measured at close; re-run the recipes rather than inheriting these. The links and screenshots above are pinned to e1d941d, the head before Greptile's review.

• npm run check passes: 2,199 pooled tests and 100 CLI tests.
• validate: 276 Specs · 6 Packs · 339 anchors → 621 nodes · 1,624 edges; 0 errors, 6 warnings (five intended prose mentions and one pending verifier gap, both pinned by the oracle).
• Stated readiness: 245 ready, 17 defined, 3 scoped, 11 idea. The drift alarm (recipe 2) is empty.
• The open-question register (recipe 20): 43 questions on 24 Specs, 16 blocking (8 deferrals with triggers, 8 holds), none malformed.
• On the platform at its pin: 243 Specs, 0 errors, 12 warnings; corpus rules 0 of 2 files failed; recipe 36 on pack:history-view with declarations: "addresses" fits in 93,806 of 100,000 units.

Feedback wanted

• The platform's decision 58. Should the Studio become the page a design pass reads first, replacing the committed Markdown Pack page? And how should a reviewer holding only a link reach the Studio: a CI artifact, a preview URL per pull request, or the committed page meanwhile? Lane E kept the committed page until you rule.
• The Pack page's summary. Sentences, each opening with its count, or a small table? Open as spec:consumers.spec-studio.pack-page#question.summaryFormat.
• Astra's three asks, most important first: say "no native run evidence shown" near the top of an executable example's page; link each pinned declaration to the assertion that checks it; and read "Rests on" and "Rested on by" as "This Pack depends on" and "Depends on members of this Pack".
• Corpus rules in practice. The platform's rules file still copies address resolution and cycle search, because a rules file cannot call them. A reader verb, or findings answers from recipes 25 and 26?

Upcoming

1. Merge, with libar-platform#13, once the owner has read the delegated rulings. The platform re-pins to the merge commit or keeps this head, which stays reachable.

2. Next PR: the platform designs ahead of its code, and the Studio follows the reader. A proposal.

Lane	What	Why now
Rules-file reach	Address resolution and cycle search a rules file can call, as a reader verb or findings answers from recipes 25 and 26, ruled in a short design pass	The platform's rules file keeps copies of both
Component designs	The platform states the components of layers 3 to 6 as component designs, and recipe 43 compares them as the code arrives	Recipe 43 is built and has nothing to compare yet on either corpus
Studio for a link	A page set per pull request, as a CI artifact or a preview URL, with the stamp file	Decision 58 waits on it
A declaration's comparison	From a pinned declaration to the assertion that checks it	The one reader task met only in part
The large Packs	application and foundation still exceed the bundle's budget after every cut; read them through perspectives (recipe 37), or cut the verifier rows example members repeat	A design pass on either needs it

Re-entry: both PRs merged, and the owner's review of the delegated rulings.

3. Statements waiting for the owner, no code needed. Their floor already allows a higher rung: spec:consumers.graph-first-planning (stated scoped, floor ready); spec:consumers.impact-graph, spec:consumers.intent-composition and spec:consumers.edit-model (stated defined, floor ready); and the Studio parents that stay defined until their deferred panels have a reader.

Still deferred, with triggers (recipe 20): the gen-1 .feature import adapter, exhaustive symbol reach, the vault, roadmap views, the reference projection, structural Mermaid, the runtime overlay, and the superseded-decision signal; plan 45 adds watching rules files, exporting sdp q's evaluator, and run evidence for the Studio's verification panels.

Refused, and staying refused:

• A per-unit satisfies that moves built work into the build backlog; a partial-realization delivery fact.
• A rung stated by tooling, or a review recorded as a graph fact.
• A deferral as a sentence inside a ready rule.
• A count, date or plan number inside a Spec.
• Reshaping a frozen projection beyond what its Spec already promises.
• A corpus rule that moves a readiness floor, or a Protocol finding a corpus can silence.
• Agents writing to .omo/.
