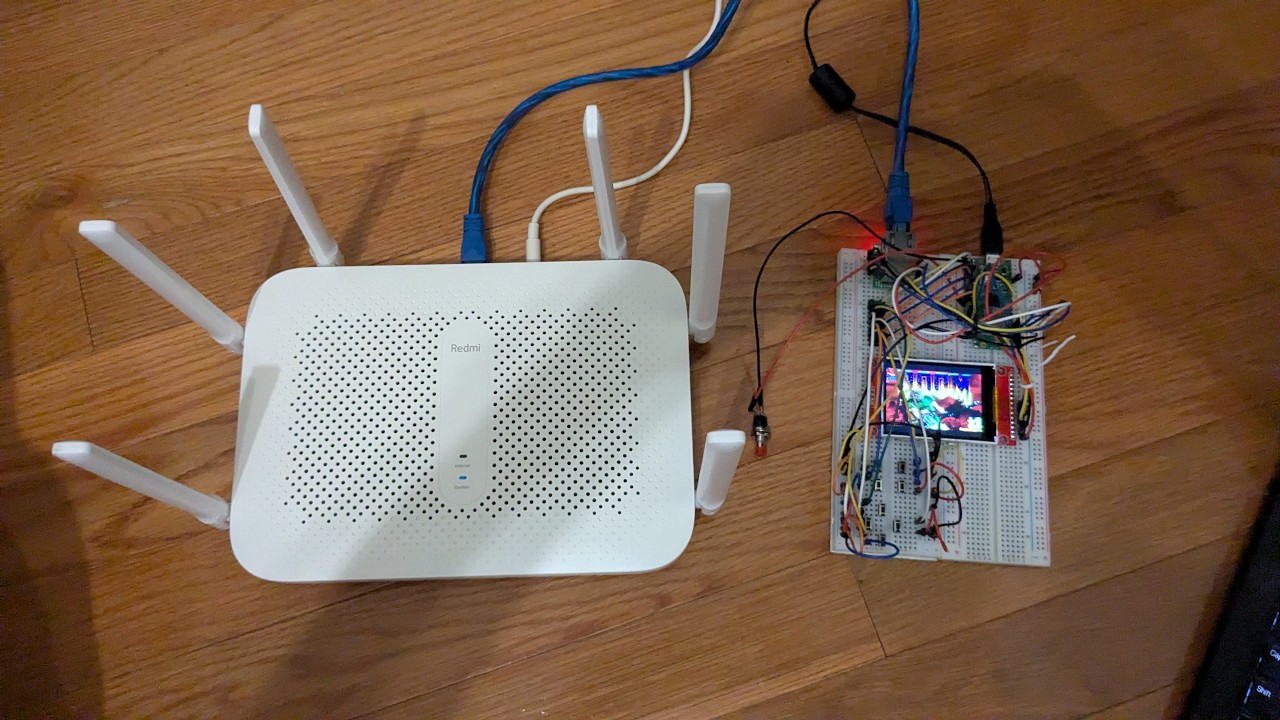

DOOM 1993 on Redmi AC2100

This guide documents how I ported original DOOM 1993 to the AC2100 router.
Even though this was tested only on that specific router and my personal laptop,
every linux-based device with an Ethernet controller should be able to run it.

Architecture

The project relies on a handmade network framebuffer and a Raspberry Pi Pico
for input polling and image display.

I used W5500 based Ethernet module for communication between the router and the pico
as well as ST7789V based display module without anti-tearing pin for image output.
Links to two components that I used in the project will be in the bottom of this document.

Pico side implementation

W5500 module is connected to the SPI0 while ST7789V is connected to SPI1 so thei don'e share
the same bus. Buttons connect directly to the GP0-8 pins on the Pico board. Though, configuration
may be changed if you want to alter connections.

W5500 runs at 40MHz and ST7789V runs at 62.5MHz. W5500 runs at lower speed because at 62.5MHz
functionality was unstable.

If you desire to run DOOM on your Linux based device without a display or input methods
here is the complete wiring diagram between Pico and all other components.

Wiring diagram is as follows:

Device	Device pin / control	Pico connection	Pico physical pin
W5500	VCC	3V3(OUT)	36
W5500	GND	GND	Any GND pin
W5500	MISO	GP16 (SPI0 RX)	21
W5500	CS	GP17	22
W5500	SCK	GP18 (SPI0 SCK)	24
W5500	MOSI	GP19 (SPI0 TX)	25
ST7789V	VCC	3V3(OUT)	36
ST7789V	GND	GND	Any GND pin
ST7789V	SCL / SCK	GP10 (SPI1 SCK)	14
ST7789V	SDA / MOSI	GP11 (SPI1 TX)	15
ST7789V	CS	GP9	12
ST7789V	DC	GP12	16
ST7789V	RES / RST	GP13	17
ST7789V	LED / BL	3V3(OUT)	36
Button	Up	GP0	1
Button	Down	GP1	2
Button	Left	GP2	4
Button	Right	GP3	5
Button	Enter	GP4	6
Button	Use	GP5	7
Button	Run	GP6	9
Button	Escape	GP7	10
Button	Fire	GP8	11

Connect the other terminal of every button to the common GND rail. The W5500 INT and RST pins are not connected in the current build. All power and logic connections use 3.3 V.

All code related to the W5500 is located in pico/src/w5500.{cpp/hpp} directory.
In addition to that, project also uses official Wiznet ioLibrary Driver that
is initialized as a submodule for the repository.

All code related to the ST7789 is located in pico/src/st7789.{cpp/hpp} directory.
Driver for the module is self-written so no external dependencies are needed for that.

The visual diagram of all the connections is below:

OpenWRT, AC2100 and Linux

DOOM itself is based off of doomgeneric. Huge shotout to
ozkl for creating such an amazing project. I needed to implement
couple of functions for the port to work properly:

• DG_GetTicksMs
• DG_SleepMs
• DG_GetKey
• DG_SetWindowTitle
• DG_Init
• DG_DrawFrame

Some of them were just a placeholders, like DG_SetWindowTitle because, obviously, there is no
window. Some are just written using LibC. However, DG_GetKey and DG_DrawFrame were ones that
are interesting.

• DG_Init initializes everything that needs to be initialized. It allocates a framebuffer, sets up
  socket and handles errors during that. Nothing particularly interesting there.

• DG_GetKey polls data from the UDP socket and receives input from the Pico when needed. Packets
  are in form of two 8-bit numbers with high bits on the places of keys that are pressed. Since
  we can't process multiple keys at a time, a queue is built and refreshed every tick. This doesn't
  introduce serious input delay so I didn't overcomplicate it further.

• DG_DrawFrame sends the data from the router to the Pico to display. It packs the pixel data and
  uses DOOM's native pallete indexing when transmitting data. This allows for more data being transmitted
  at a time, 4 rows to be exact. Since I'm using raw unfragmented UDP packet, its maximum size is
  limited to 1472 bytes. 4 rows and a header fit in there nicely. Pico's side assembles the frame row
  by row. When full frame is assembled - it appears on the ST7789V screen.

Building and running it yourself

These instructions assume an x86-64 Linux build machine, an original RP2040-based Raspberry Pi Pico, and OpenWrt 25.12.2 running on a Redmi AC2100 (ramips/mt7621). Other OpenWrt devices require a toolchain matching their OpenWrt release and target.

You will need Git, CMake 3.20 or newer, Python 3, an Arm GNU embedded compiler providing arm-none-eabi-gcc, curl, tar with Zstandard support, SSH/SCP, and a legally obtained Doom IWAD such as doom.wad.

Clone the repository and initialize submodules

Clone everything in one operation:

git clone --recurse-submodules https://github.com/anhol0/redmidoom.git
cd redmidoom

If the repository was cloned without --recurse-submodules, initialize its DoomGeneric and WIZnet ioLibrary submodules from the repository root:

git submodule update --init --recursive

Configure the network

The Pico uses a static IPv4 address. Edit pico/src/config.hpp before building the firmware:

inline constexpr wiz_NetInfo network{
    .mac  = { 0xEE, 0x4A, 0x4F, 0xA1, 0x22, 0xDE },
    .ip   = { 192, 168, 1, 69 },
    .sn   = { 255, 255, 255, 0 },
    .gw   = { 192, 168, 1, 1 },
    .dns  = { 192, 168, 1, 1 },
    .dhcp = NETINFO_STATIC,
};

ip is the address assigned to the Pico, while gw is the router's LAN address. Choose a Pico address that is unused on the LAN, preferably outside the router's DHCP allocation range, and give every device a unique MAC address.

Set UDP_ADDR in doom/doomgeneric_posix.c to the same Pico address:

#define UDP_ADDR "192.168.1.69"

Both programs currently use UDP port 5000. If it is changed, update UDP_PORT on both the Pico and Doom sides.

Build and flash the Pico firmware

Install the Raspberry Pi Pico SDK. Version 2.3.1 is known to build this project:

mkdir -p "$HOME/.local/opt"
git clone --branch 2.3.1 https://github.com/raspberrypi/pico-sdk.git "$HOME/.local/opt/pico-sdk"
git -C "$HOME/.local/opt/pico-sdk" submodule update --init

Configure and build the firmware from the repository root:

cmake -S pico -B build-pico \
    -DCMAKE_BUILD_TYPE=Release \
    -DPICO_BOARD=pico \
    -DPICO_SDK_PATH="$HOME/.local/opt/pico-sdk"

cmake --build build-pico --parallel

The resulting firmware is build-pico/picocontroller.uf2. Hold the Pico's BOOTSEL button while connecting it over USB, then copy that UF2 file to the RPI-RP2 USB mass-storage device. After rebooting, the Pico waits for an Ethernet link and listens for frames on UDP port 5000.

Build Doom for OpenWrt

First verify the release and target on the router:

ssh root@192.168.1.1 'cat /etc/openwrt_release'

For the tested OpenWrt 25.12.2 installation, the target should be ramips/mt7621. Download its matching OpenWrt cross toolchain and verify it before extracting:

mkdir -p "$HOME/.local/opt"
cd "$HOME/.local/opt"

curl -LO https://downloads.openwrt.org/releases/25.12.2/targets/ramips/mt7621/openwrt-toolchain-25.12.2-ramips-mt7621_gcc-14.3.0_musl.Linux-x86_64.tar.zst

echo 'e16c1d119297d053f1cd3b2958327d6099cb6b55ca9062da5e0d6db69263d3c3  openwrt-toolchain-25.12.2-ramips-mt7621_gcc-14.3.0_musl.Linux-x86_64.tar.zst' | sha256sum -c -

tar --zstd -xf openwrt-toolchain-25.12.2-ramips-mt7621_gcc-14.3.0_musl.Linux-x86_64.tar.zst
cd -

Point CMake at the compiler inside the extracted toolchain. Keep this build directory separate from build-pico; the two targets use completely different compilers and system libraries.

OPENWRT_TC="$HOME/.local/opt/openwrt-toolchain-25.12.2-ramips-mt7621_gcc-14.3.0_musl.Linux-x86_64/toolchain-mipsel_24kc_gcc-14.3.0_musl"
export STAGING_DIR="$OPENWRT_TC"

cmake -S doom -B build-openwrt \
    -DCMAKE_BUILD_TYPE=Release \
    -DCMAKE_SYSTEM_NAME=Linux \
    -DCMAKE_SYSTEM_PROCESSOR=mipsel \
    -DCMAKE_C_COMPILER="$OPENWRT_TC/bin/mipsel-openwrt-linux-musl-gcc"

cmake --build build-openwrt --parallel

This produces build-openwrt/redmidoom, a MIPS32r2 little-endian executable linked against OpenWrt's musl C library. Warnings originating in the upstream DoomGeneric code are currently expected.

Do not reuse either CMake build directory with another compiler. If the Pico SDK or OpenWrt toolchain is changed, remove the corresponding build directory and configure it again.

Copy Doom to the router and run it

Connect and power the Pico, display, and W5500 before starting Doom. Copy the executable and your IWAD to the router:

ssh root@192.168.x.x 'mkdir -p /tmp/redmidoom'
scp -O build-openwrt/redmidoom /path/to/doom.wad root@192.168.x.x:/tmp/redmidoom/

-O makes recent OpenSSH versions use the legacy SCP protocol supported by many OpenWrt installations. It may be omitted if the router has an SFTP server.

Run the game over SSH:

ssh -t root@192.168.x.x
cd /tmp/redmidoom
chmod +x redmidoom
./redmidoom -iwad doom.wad

The router sends frames to the address configured in UDP_ADDR. Once the Pico has received a packet, it sends button state updates back to the packet's source address. Files under /tmp are stored in RAM and disappear when the router reboots.

Credits

• doomgeneric
• Wiznet
• OpenWRT
• Raspberry Pi Pico SDK

Links to components used

• ST7789V display without touch
• W5500 based Ethernet adapter
